High-voltage measuring device (U/I-multimeter, AC/DC)

High-voltage measuring device

U/I-Multimeter, AC/DC mit Ethernet-Schnittstelle (TCP/IP)

High-voltage measuring device

U/I-Multimeter, AC/DC mit Ethernet-Schnittstelle (TCP/IP)

AC: 2 V … 7 kV / 15 µA … 500 mA
DC: ± 1V ... ±10 kV / ±15 µA ... ±500 mA

The ELABO high-voltage measuring devices were developed to be able to carry out precise and fast high-voltage and current measurements in calibration and development laboratories in particular. All the parameters can be programmed via an Ethernet interface. Corresponding driver modules make integration in existing systems easier.

Self-contained measuring device for universal use in laboratories and automated systems
Ethernet interface (TCP/IP)

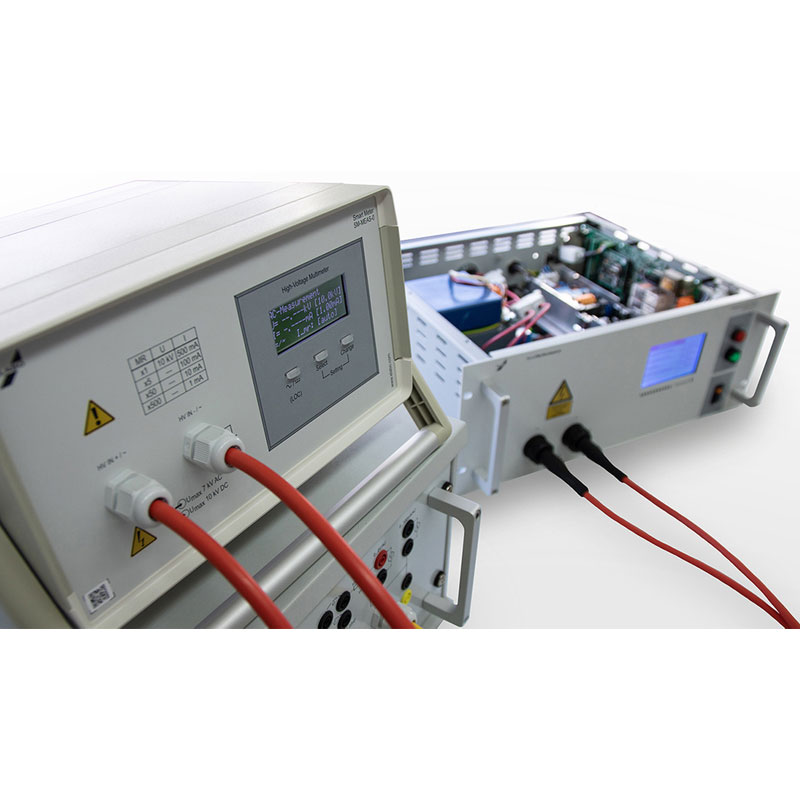

Front: 2 x 1.8 m high-voltage cable with TOPAS plug connection

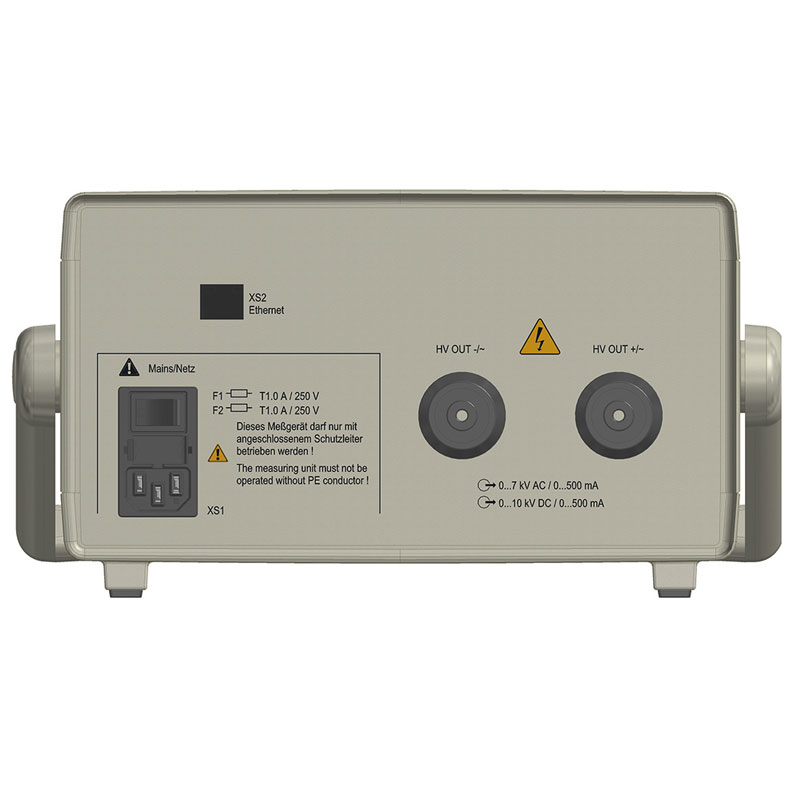

Rear: DUT connection via 2 x integrated TOPAS connection sockets
2.5 m mains connection cable - Schuko plug - IEC socket
3 m network cable CAT6 (patch cable)
Integrated bracket enables easy carrying and a better view of the display thanks to individual set-up positions
Robust housing (W = 260 mm, D = 260 mm, H = 160 mm)

Current measurement

±15 µA (DC) ... ±500 mA (DC)
15 µA (AC) ... 500 mA (AC) / trms

Measuring ranges

1 mA
10 mA
100 mA
500 mA

Voltage measurement

±1 V (DC) ... ±10 kV (DC)
2 V (AC) ... 7 kV (AC) / trms

Measuring range

10 kV

Measuring method

24 bit ∑ - ∆ - converter

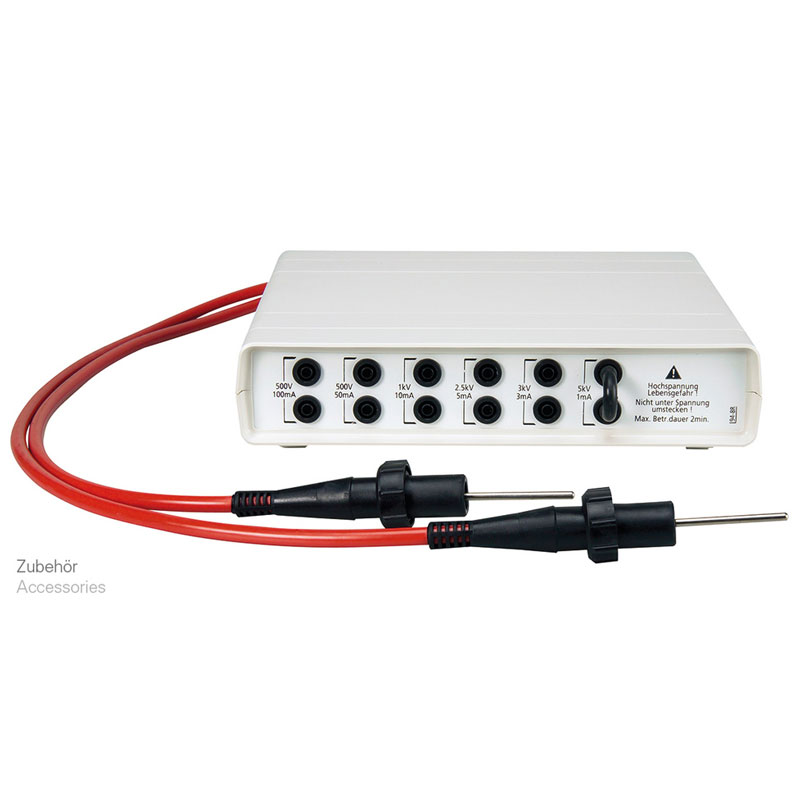

Load resistor network (5 / 10 / 100 / 500 kOhm, 1 / 5 MOhm) (Art. No. 94-8R)
ELABO ^Elution® software
Factory calibration (Art. No. SM-MEAS-0-E099) or DAkkS calibration (Art. No. 94-8F)
