HV test devices BestPerformance G1-1G / G1-1T

HV test devices BestPerformance

G1-1G / G1-1T | 0,1 .. 2,50 kV • 0,2 .. 5,00 kV AC

HV test devices BestPerformance

G1-1G / G1-1T | 0,1 .. 2,50 kV • 0,2 .. 5,00 kV AC

The touch panel in a black-and-white design facilitates operation of the testing devices, which are equipped with an Ethernet interface as standard (alternatively with RS232C or USB).

All the devices are also available without a control module e.g. for use in automatic systems.

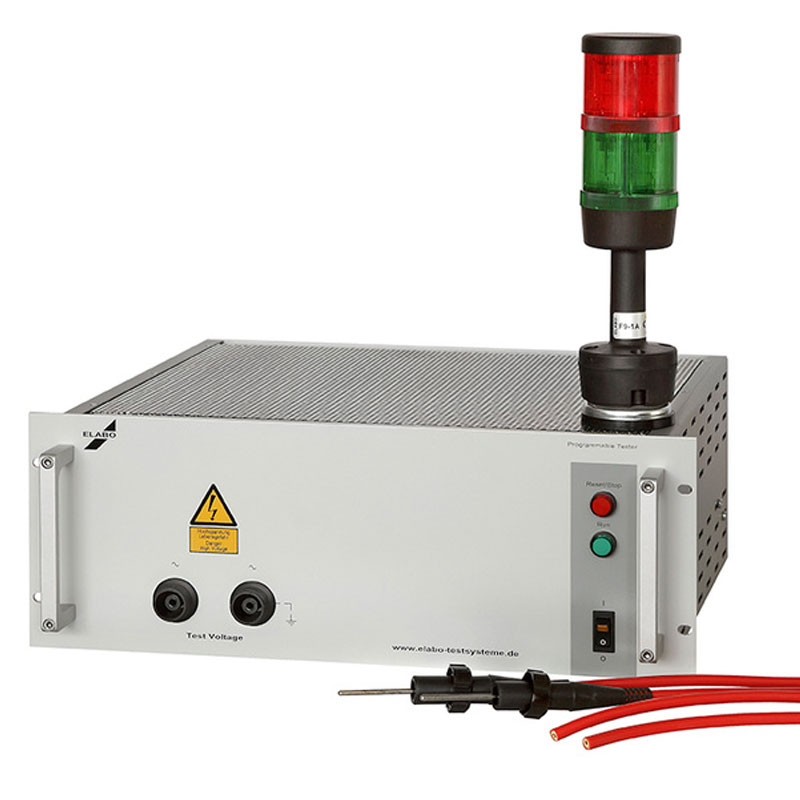

High-voltage tester for alternating current voltage (AC)

The tester is available without a control module as an alternative. This makes flexible uses possible in manual or automated systems for testing high voltage on systems, parts or components.

With touch panel: G1-1G
Without touch panel: G1 -1T

19" slide-in technology
High-quality metal housing
Access lock via parameterizable password levels
Easy to service - can be replaced in a few simple steps
Ethernet interfaces or alternatively via RS232-C or USB

Test voltage

0,1 .. 2.50 kV - 0.2 ... 5.00 kV AC

Voltage ramp

Freely programmable for start and end of test

Power rating

500 VA

Tripping current

0 .. 10.00 mA - 100.0 mA

Interface

Ethernet - digital interface

Mains voltage

230 V / +/- 10 %; 49 .. 61 Hz

Size

19" / 4 U; depth 360 mm

Housing 19"/4U 93-1B
Test mobile Primus Basic
Test pistol 94-2A
Warning lamp F9-1A
Two-hand control F9-1L-01
Foot switch F9-1D
Test cage 94-3A/B
Dummy module 94-2M Z01

Burning

Overcurrent triggering can be deactivated for troubleshooting

Additional digital outputs

Six digital outputs for controlling an external switch matrix

RS232-C

Alternative interface to the Ethernet interface

USB INTERFACE

Alternative interface to the Ethernet interface

Software package

Elution® Device
