HV testers HighPerformance

F1-1C / F1-1P | 300 .. 5.000 V AC, 400 .. 10.000 V AC

HV testers HighPerformance

F1-1C / F1-1P | 300 .. 5.000 V AC, 400 .. 10.000 V AC

The multi-colour touch panel facilitates ergonomic operation of the testing devices, which are equipped with a serial RS232C interface as standard (alternatively with Ethernet or USB). All the devices are also available without a control module e.g. for use in automatic systems.

Modular high-voltage tester

Depending on the variant and extension level, the devices make flexible uses possible in manual or automated systems for testing high voltage or insulation resistance in systems, parts or components.

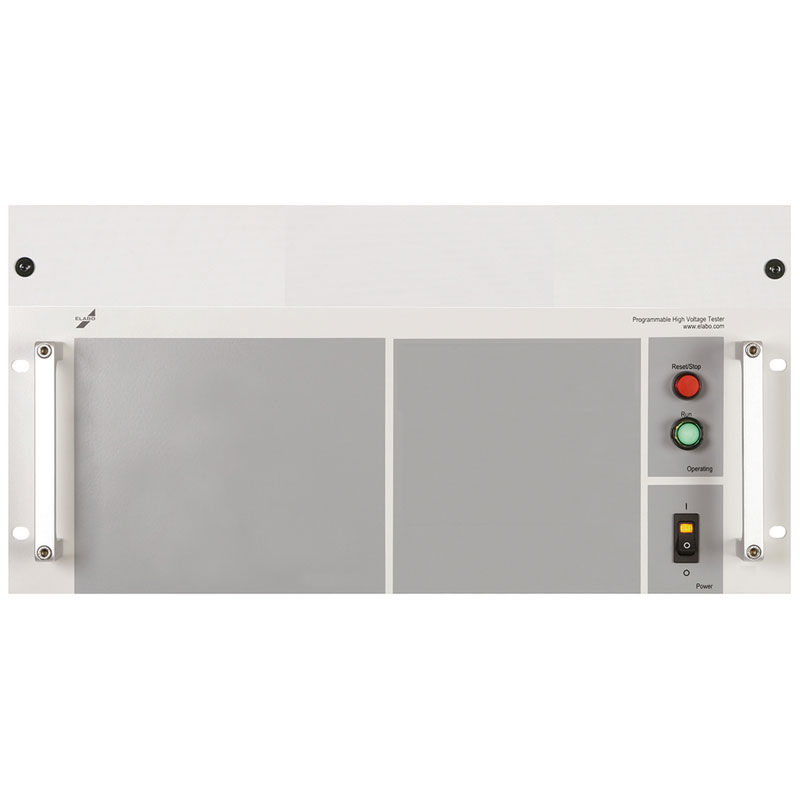

With touch panel: F1-1C
Without touch panel: F1-1P



HV Prüfgeräte HP F1-1B / F1-1N

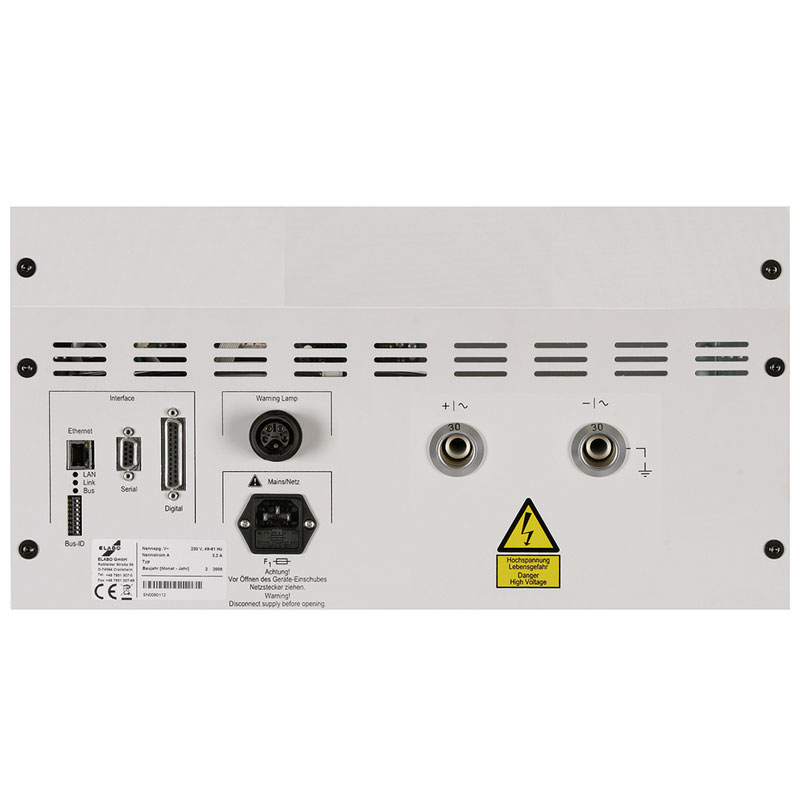

  • 19" slide-in technology
  • High-quality metal housing
  • Access lock via parameterizable password levels
  • Easy to service - can be replaced in a few simple steps
  • Ethernet interfaces or alternatively via RS232-C or USB

Test voltage

300 .. 5,000 V AC, 400 ... 10,000 V AC, 400 ... 6,000 V DC (option), 500 ... 12,000 V DC (option)

Voltage ramp

Freely programmable for start and end of test

Power rating

500 VA

Tripping current

0 .. 1 / 10 / 50 mA

Interface

RS232-C - digital interface

Mains voltage

230 V / +/- 10 %; 49 .. 51 Hz

Size

19" / 6 U; depth 360 mm

  • Housing 19"/6HE 93-1C
  • Test mobile Primus Basic
  • 94-2A ZF1-1C
  • Warning lamp F9-1A
  • Two-hand operation F9-1L-01

DC voltage

Test voltage: 500 ... 6,000 / 12,000 VDC
Tripping current: 0 ... 1 / 10 / 50 mA

Insulation resistance

0,1 .. 1 / 10 / 100 MΩ + autorange

Additional digital outputs

6 digital outputs for controlling an external switching matrix

Ethernet

Alternative interface to RS232-C

USB

Alternative interface to RS232-C

Software package

Elution® Device software package
